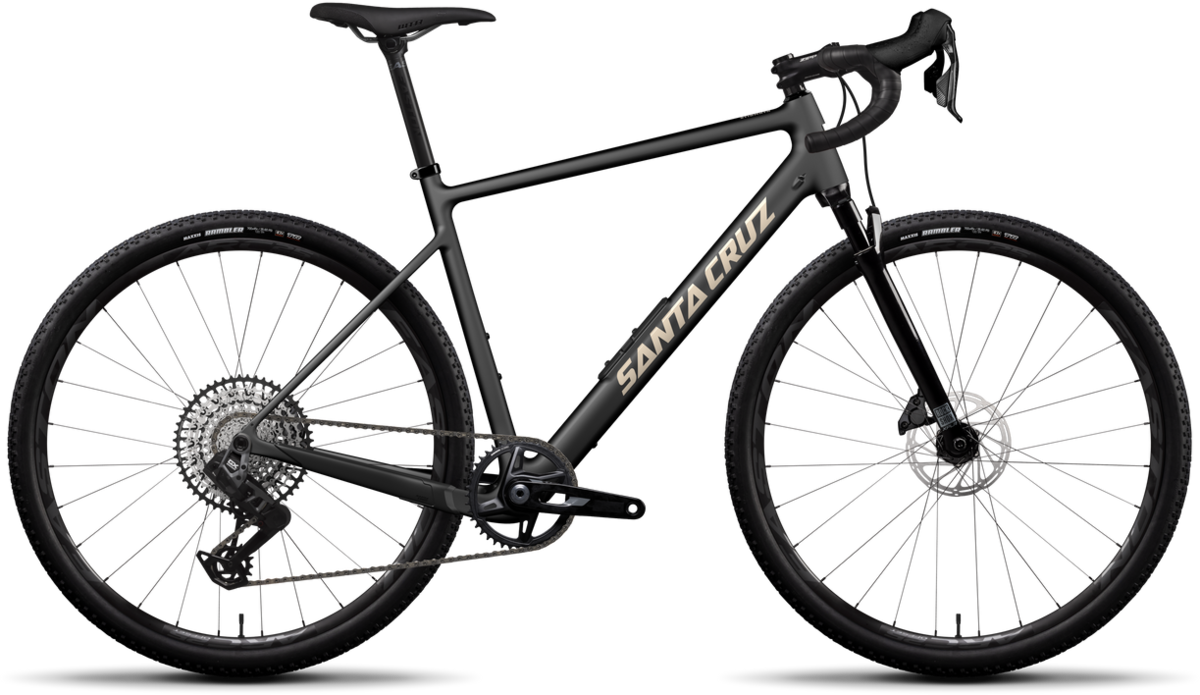

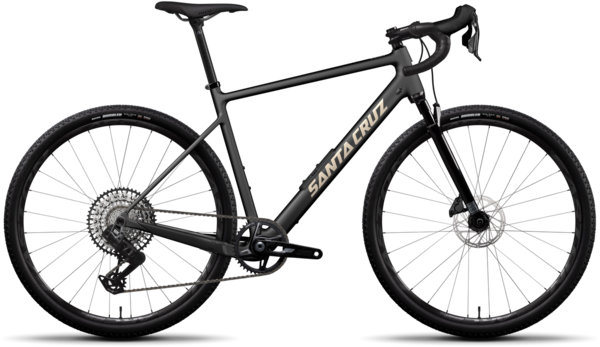

Santa Cruz Stigmata Rival 1X AXS Rudy

Santa Cruz Stigmata Rival 1X AXS Rudy
  • Color: Matte Carbon
  • Color: British Racing Green
$5,049.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
As per our dealer agreements with our main bike suppliers, we unfortunately are not permitted to ship some of their bikes, however, some can be shipped. Therefore, please give us a ring regarding a particular bike. Any bike can be purchased online and picked up at your convenience. If you live out of the area, give us a call and we can discuss our fly and ride program - we've hosted guests from all over who plan a Napa Valley getaway and take a bike home with them. We've also delivered bikes all over the country in unique circumstances - give us a call as we'd love to set you up. We can ship all parts, accessories and clothing.

Details

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

GRAVITATING TO GRAVEL
The Stigmata is an off-road speed bike (think swift, not Zwift). Its singletrack prowess stems from progressive geometry, plenty of room for big tires, and insights from our mountain bikes. It’s the roadie’s off-roader, perfect for exploring wild routes, and also ideal for mountain bikers seeking adventure off the beaten path.

GO FAR TO GET FOUND
If wanderlust has taken hold, grab a Stigmata. Whether you're close to home or exploring far-off lands, its design and features ensure you can go the distance. Whether you’re seeking the spirit of gravel or planning a quick overnight mission with only a credit card, the Stigmata is your ultimate getaway vehicle.

LIGHT, FAST, AND MORE METTLE
When lining up at a gravel race, you need a bike that lifts you. It should have geometry that’s fast in the pack yet stable when you're deep in the hurt locker. A lightweight frame ensures you’re making watts, not carrying extra grams, and ample tire clearance prevents you from hauling an extra 10 lbs of Kansas clay.

Frame SizeX-SmallSmallMediumLargeX-LargeXX-Large
Reach (cm / in) 37.5 / 14.76 39.0 / 15.35 40.5 / 15.94 42.0 / 16.54 43.5 / 17.13 45.0 / 17.72
Stack (cm / in) 55.0 / 21.65 56.4 / 22.20 57.6 / 22.68 60.0 / 23.62 61.2 / 24.09 63.1 / 24.84
Head tube angle (degree) 69.5 69.5 69.5 69.5 69.5 69.5
Head tube length (cm / in) 9.0 / 3.54 10.5 / 4.13 12.0 / 4.72 14.5 / 5.71 16.0 / 6.30 18.0 / 7.09
Rear center (cm / in) 42.3 / 16.65 42.3 / 16.65 42.3 / 16.65 42.3 / 16.65 42.3 / 16.65 42.3 / 16.65
Front center (cm / in) 60.5 / 23.82 62.5 / 24.61 64.5 / 25.39 66.8 / 26.30 68.8 / 27.09 71.0 / 27.95
BB height (cm / in) 27.8 / 10.94 27.8 / 10.94 28.0 / 11.02 28.0 / 11.02 28.2 / 11.10 28.2 / 11.10
BB drop (cm / in) 7.8 / 3.07 7.8 / 3.07 7.6 / 2.99 7.6 / 2.99 7.4 / 2.91 7.4 / 2.91
Wheelbase (cm / in) 102.3 / 40.28 104.3 / 41.06 106.3 / 41.85 108.7 / 42.80 110.8 / 43.62 113.0 / 44.49
Top tube length (cm / in) 53.3 / 20.98 55.2 / 21.73 57.0 / 22.44 59.2 / 23.31 61.0 / 24.02 63.1 / 24.84
Seat tube length (cm / in) 45.0 / 17.72 45.5 / 17.91 48.5 / 19.09 51.5 / 20.28 54.5 / 21.46 57.5 / 22.64
Seat tube angle (degree) 74 74 74 74 74 74
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small 152 - 160 60 - 63
Small 160 - 168 63 - 66
Medium 168 - 175 66 - 69
Large 175 - 183 69 - 72
X-Large 183 - 188 72 - 74
XX-Large 188 - 193 74 - 76

Specs

Frame Carbon CC Gravel
Fork RockShox Rudy Base XPLR, 40mm
Rims Easton ARC Offset 25 700c
Hubs Front: DT Swiss 370, 12x100, Centerlock, 28h
Rear: DT Swiss 370, 12x142, XDr, Centerlock, 28h
Tires Maxxis Rambler, 700x45c, DC, EXO
Bottom Bracket SRAM DUB 68mm Road Wide BB
Crankset Rival XPLR, 42t XS/S: 170mm, M/L: 172.5mm, XL/XXL 175mm
Shifters SRAM Rival AXS
Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Cassette/Freewheel SRAM GX 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Brakes SRAM Rival
Rotors SRAM Centerline, Centerlock, 160mm
Handlebars Zipp Service Course 70 XPLR AL Bar, 31.8 XS/S: 42cm, M: 44cm, L/XL/XXL: 46cm
Tape/Grips Velo Bar Tape
Stem Zipp Service Course Stem All Sizes: 70mm
Headset Cane Creek 50 IS Integrated Headset -or- Cane Creek 40 IS Integrated Headest
Seatpost Easton EC70, 27.2, Zero Offset All Sizes: 350mm
Saddle WTB Silverado Medium, CroMo

* Subject to change without notice.

Part Numbers

Option UPC MPN
Matte Carbon / Small / 700c 192219498775 58-26290-446-2-909-003501
Matte Carbon / Medium / 700c 192219498812 58-26290-446-3-909-003501
Matte Carbon / Large / 700c 192219498850 58-26290-446-4-909-003501
Matte Carbon / X-Large / 700c 192219498898 58-26290-446-5-909-003501
British Racing Green / Large / 700c 192219498874 58-26290-446-4-910-003501
British Racing Green / X-Large / 700c 192219498911 58-26290-446-5-910-003501
